Eyesera

ES-CC-2W-3M-ROBO-DUAL

3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3.0MP dual light indoor Smart Wifi Cam	WiFi	TF card (maximum support 128GB)
Parameter		Audio
Master Chip	FH8626 V210 chipset	Built-in speaker	1W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/4" Image Sensor	Lens
Compression	H.264	Focal Length	3.6mm
Pixel	2304*1296 3.0MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-10 meters	Power
Detection Angle	72°	Power Supply	DC 5V 1.5A
Pan Tils		Working Power	<6W
Pan Tilt Angle	Horizontal 340°, Vertical 68.5°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-10°C to 60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared LED	Infrared LED (4pcs 10mil) distance 10M	N.W/PC	280g
White LED	White LED (4pcs 0W) distance 10M	G.W/CTN	19KGS

ES-CC-OG-ROBO-DUAL-1

2.4 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3MP bulet-pan tilt xoom camera	WiFi	Single-frequency 2.4G
Parameter		Audio
Master Chip	XM chipset	Built-in speaker	1W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/3.2" Image Sensor	Lens
Compression	H.265/H.264	Focal Length	4.0mm +4.0mm
Pixel	192010802.4MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-12 meters	Power
Detection Angle	72°	Power Supply	DC 5V 1.5A
Pan Tils		Working Power	<7.5W
Pan Tilt Angle	Horizontal 350°, Vertical 60°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-20°C - +60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared LED	Infrared LED (4pcs 14mil) distance 10M	N.W/PC	280g
White LED	White LED (6 white 1W) distance 10M	G.W/CTN	19KGS

ES-CC-SLB-3M

3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3MP smart light bulb camera	WiFi	Single-frequency 2.4G
Parameter		Audio
Master Chip	FH8632 chipset	Built-in speaker	1W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/4" Image Sensor 1054	Lens
Compression	H.264	Focal Length	3.6mm
Pixel	2304*1296 3MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-12 meters	Power
Detection Angle	72°	Power Supply	AC:100-240v E27
Pan Tils		Working Power	<6W
Gimbal Angle	Horizontal 350°, Vertical 90°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 25°/sec	Operating Temperature	-20°C - +60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 10mil) distance 10M	N.W/PC	280g
White LED	White LED (6 white 1W) distance 10M	G.W/CTN	19KGS

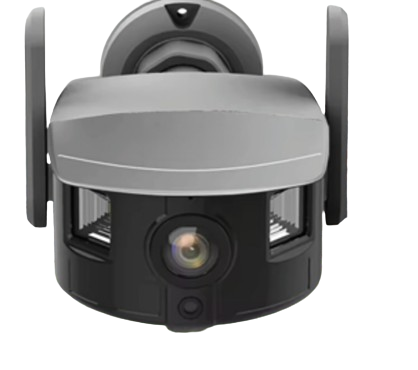

ES-CC-PC-150-3M

3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3MP outdoor electronic PTZ camera	WiFi	Single-frequency 2.4G
Parameter		Audio
Host System	Linux	Built-in speaker	2W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/2.8" Image Sensor	Lens
Compression	H.264	Focal Length	2.3mm
Pixel	2304*1296 3.0MP	Angle	F2.0
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-12 meters	Power
Detection Angle	165°	Power Supply	DC:12V 1.2A A
Pan Tils		Working Power	<12W
Pan Tilt Angle	Horizontal 165°, Vertical 110°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-20°C - +60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 20mil) distance 20M	N.W/PC	280g
White LED	White LED (6 white 1W) distance 15M	G.W/CTN	19KGS

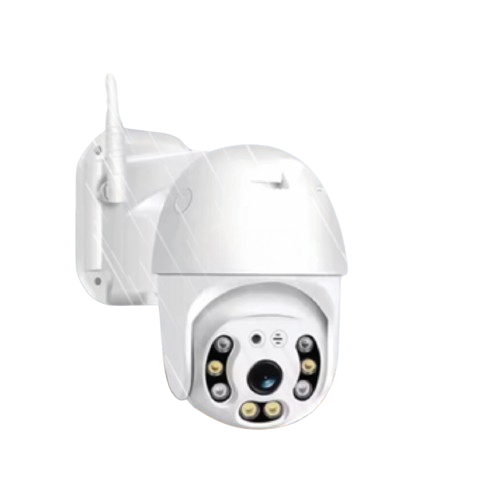

ES-CC-PT-OD-3M

3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3MP Smart HD Outdoor Waterproof Cam	WiFi	Single-frequency 2.4G
Parameter		Audio
Host System	Linux	Built-in speaker	2W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	2.9" Image Sensor	Lens
Compression	H.264	Focal Length	4mm
Pixel	2304*1296 3.0MP	Angle	F2.0
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-12 meters	Power
Detection Angle	165°	Power Supply	DC 12V 1.2A
Pan Tils		Working Power	<15W
Pan Tilt Angle	Horizontal 270°, Vertical 80°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-20°C - +60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 20mil) distance 20M	N.W/PC	280g
White LED	White LED (6 white 1W) distance 15M	G.W/CTN	19KGS

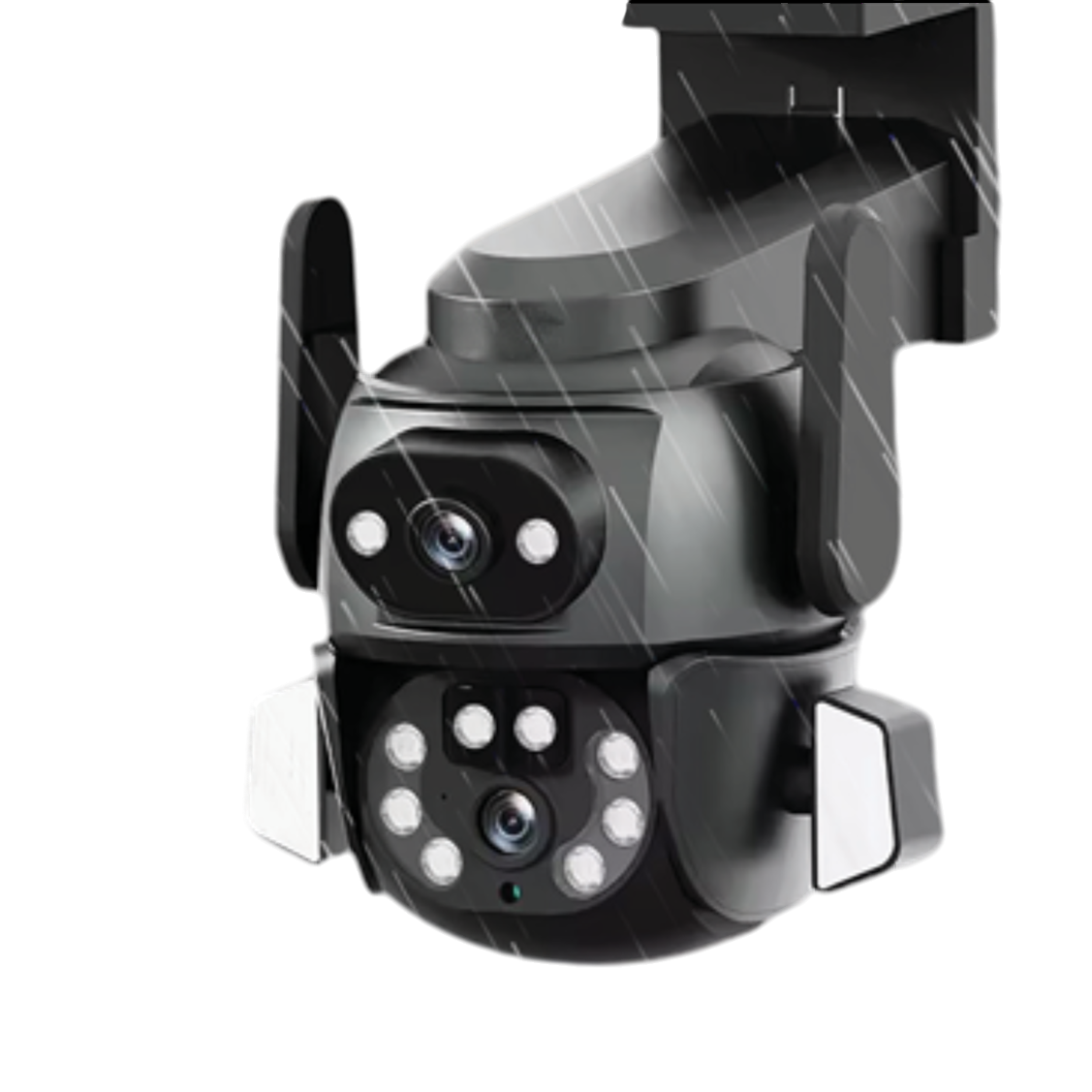

ES-SL-ICS-2M-DUAL

2+2 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	2+2 MP Dual lens linkage zoom HD	WiFi	2.4G
Parameter		Audio
Master Chip	JS chip	Built-in speaker	2W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/2.8" Image Sensor	Lens
Compression	H.265/H.264	Focal Length	4.0mm+4mm
Pixel	2304*1296 3.0MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-12 meters	Power
Detection Angle	165°	Power Supply	DC 12V 1.2A
Pan Tils		Working Power	<15W
Pan Tilt Angle	Horizontal 270°, Vertical 80°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-20°C - +60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 20mil) distance 20M	N.W/PC	280g
White LED	White LED (6 white 1W) distance 15M	G.W/CTN	19KGS

ES-CC-10X-DUAL-PT-3M-1

3+3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3+3 MP Dual light indoor Smart Wifi Cam	WiFi	TF card (maximum support 128GB)
Parameter		Audio
Master Chip	FH8626 V210 chipset	Built-in speaker	1W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/4" Image Sensor	Lens
Compression	H.264	Focal Length	3.6mm
Pixel	2304*1296 3.0MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-10 meters	Power
Detection Angle	72°	Power Supply	DC 5V 1.5A
Pan Tils		Working Power	<6W
Pan Tilt Angle	Horizontal 340°, Vertical 68.5°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-10°C - 60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 10mil) distance 10M	N.W/PC	280g
White LED	White LED (4pcs 0W) distance 10M	G.W/CTN	19KGS

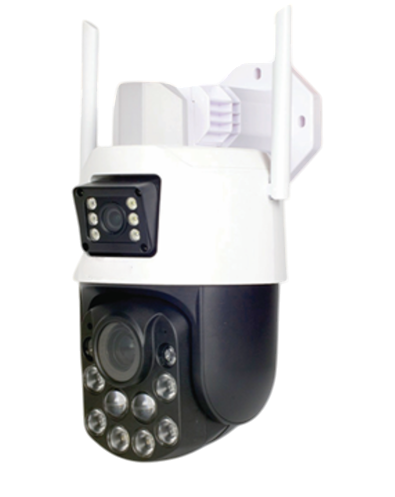

ES-502-GB-WF-SL

3 MP

Optional Lens

Coverage

Smart IR LED

AHD, CVI, TVI, CVBS

4 in 1 Cable

Product Type		Networking Mode
Camerae	3 MP Dual lens Smart Wifi Camera	WiFi	TF card (maximum support 128GB)
Parameter		Audio
Solution	XM650v200+2009*2	Built-in speaker	1W
APP Operating System	Android & iOS	Built-in microphone	Monitoring range: 10 meters
Sensor	1/4" Image Sensor	Lens
Compression	H.264	lens	12X optical zoom
Pixel	2304*1296 3.0MP	Angle	F2.2
APP	Carecam Pro	Storage
Alarm Method		Cloud Storage	Cloud Storage (alarm recording)
Detection Method	Humanoid detection, motion detection	Local Storage	TF card (maximum support 128GB)
Detection Distance	0-10 meters	Power
Detection Angle	72°	Power Supply	DC 12V+_25%
Pan Tils		Power consumption	<12W
Pan Tilt Angle	Horizontal 340°, Vertical 68.5°	Other
Rotating Speed	Horizontal 30°/sec, Vertical 20°/sec	Operating Temperature	-10°C - 60°C
Night Vision Mode		Working Humidity	10%–90%RH
Full color night vision	Support	Weight
Infrared	Infrared LED (4pcs 10mil) distance 10M	N.W/PC	280g
White LED	White LED (4pcs 0W) distance 10M	G.W/CTN	19KGS
